Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: VStarcam
  • Model Number: C23S
  • Type: Digital Camera
  • Style: Bullet Camera
  • Sensor: CMOS
  • Technology: Onvif
  • Special Features: Waterproof / Weatherproof
  • Key Word: security ip camera
  • Control protocol: ONVIF protocol,high interoperability
  • resolution/frame rate: 1080P/VGA/QVGA 30fps/25fps
  • technology 1: Plug and Play
  • Compression format: H.264 Baseline Profile_H.264 Main Profile _MJPEG/JPEG Baseline
  • Online visitor: Support 10 online visitors viewing simutaneously
  • Motioin Detection: can setup motion detection sensitivity
  • Alarm notification: E-mail snapshot, FTP upload alarm pic and video.
  • System security: 8-level user authority management, built in watchdog,
  • Warranty: one year limited warranty

Packaging & Delivery

Packaging Details: 1. packaged with our LOGO;
2.Netual package
3. OEM and th MOQ is 500pcs

VStarcam C23S HD 1080P indoor ip camera support ONVIF wifi wireless p2p security ip camera

Product Description

View more, do more, and protect more with the clarity and mobile control of VStarcam Pan & Tilt Day/Night wireless ONVIF wireless built-in wifi ip camera. Download the free EYE4 app and monitor your home or business – anywhere, anytime – on your smartphone or tablet. Experience confident clarity and total control with the ultra-smooth pan/tilt and two way audio functionality. Integrated motion-sensing and night-vision technology provides around-the-clock surveillance.



Features

1. 9pcs LED, IR distance 10M. Lens 3.6 mm IP shenzhen CCTV Camera

2. Support ONVIF 2.0, RTSP protocol

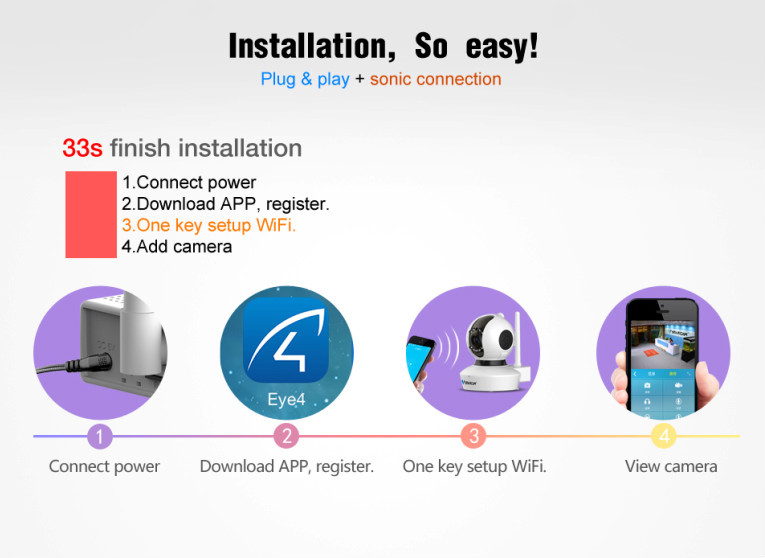

3.  WPS one key setup WiFi, acoustic wave wifi setting

4. 1080P,720P,VGA,QVGA triple stream

5. Two-way audio, Remote Pan/Tilt rotate IP camera

6. Wi-Fi/802.11/b/g/n,support dynamic IP

7. Motion detection, email alert, FTP upload

8. Iphone, 3G phone, Smartphone supported

9. Multi-language, Firefox, Safari, Google browser

10. Pan:270 degree, Tilt: 70degree, auto cruise
11. Support 64GB TF Card

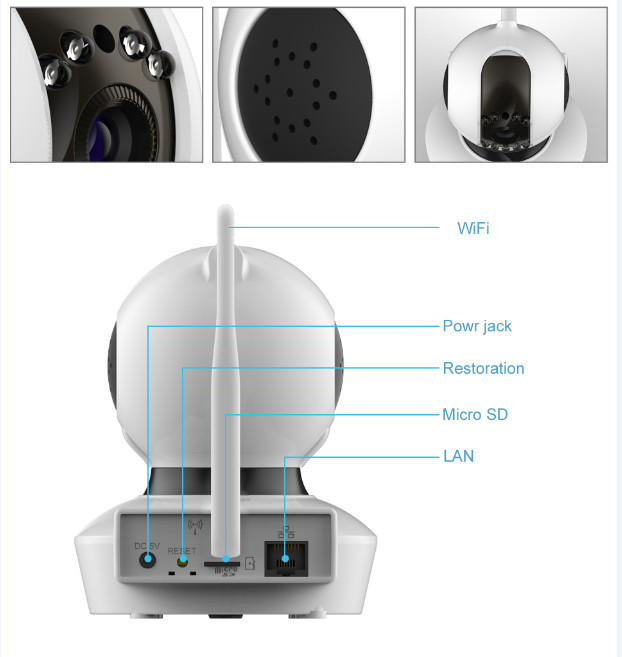

Details of C23S

Specification :

SystemOSEmbedded Linux OS
system securityThree level user authority management
online userssupport 4 online visitors simultaneously
DDNSFree DDNS
Control protocolONVIF 2.4 protocol, high interoperability
ProcessorHisilicon processor,built-in ARM926 Max. 440MHz and a high-speed video co-processor.
ResetLong press for 15 seconds to restore back to factory settings
CollectionImage sensor1/3inch 1080p Progressive scan CMOS sensor(0v2710)
CMOSsupport AWB, AGC, BLC
SNR≥39dB
Minimum illumination0.8Lux/F1.4(colourful model ),0.3Lux/F1.(B&W mode)
Lens/viewing angle3.6mm F1.4/56.14°
Night visionDual IR-CUT filter auto switch, 9pcs 850nmΦ5mm LED,10m IR distance
IR control IR turned on: night vision view enabled, infrared Ray, ICR auto detect.                                                             IR turned off: night vision disabled, infrared ray off, ICR stay in day view mode.
VideoCompression FormatH.264 Main Profile/H.264 Baseline Profile/MJPEG/JPEG Baseline
Video coding processMulti-stream:1080P/25fps+720P/25fps+VGA/25fps+720P 1fsJPEG  snapshot
Resolution 1080p/720p/VGA
Bit RateCBR/VBR, output bit rate range:128~4096kbps
Frame rate15fps
Picture AdjustmentContrast, brightness, saturation, chroma are adjustable.
AudioInputBuilt in -48dB Microphone
OutputBuilt in speaker(8Ω1W)
Sampling frequency / width8KHz/16bit
Compression formatADPCM/32kbps
NetworkInterface10Base-T / 100Base-TX, RJ45 connector
Network ProtocolTCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,RTSP,P2P,ONVIF etc.
WIFIWiFi802.11b/g/n
Antenna3dBi antenna,stronger signal, more stable
Wireless network security one key setup WiFi, do not need network cable .
storageStorage modeLocal storage / client storage/NVS /NVR storage
card support  64G TF card .
InterfaceMicro SD
Pan-TiltP/TPan:280°,Tilt:80°
Preset Postion support up to 16  preset postions
Limit methodSoftware limit position, more accurate preset positions,lower Pan Tilt failure rate
AlarmMotion detectionSupport motion detection
Alarm actionImage upload via email/FTP server
Physical indexRated VoltageDC5/2A±0.3V
Power comsumptionRated power:3.0w(IR ON)
Working environmentWorking Temperature:-20~70℃,Working Humidity 90%
WeightGross Weight :295g (Note: in kind prevail)
Housing materialABS plastics
Camera size195x140x127mm (L×W×H)
InstallationWall mounting, ceiling mounting


Only for reference
