Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: VStarcam
  • Model Number: C24S
  • Type: Digital Camera
  • Style: P/T
  • Sensor: CMOS
  • Technology: Pan / Tilt / Zoom
  • Special Features: Vandal-proof
  • Key word: cctv ip wireless camera
  • P/T: Pan:355 degree ,Tilt:120 degree
  • Local Storage: support up to 128GB Micro SD card ,24-hour loop recording.
  • Control protocol: ONVIF 2.0 protocol, high interoperability
  • WIFI settting: one key wifi setting
  • Technology 1: Two way audio
  • Technology 2: motion detection
  • Network Protocol: TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,RTSP,P2P,etc.
  • Accessories: Power adapter, user manual, warranty card, mounting bracket, screws.
  • Warranty: 1 limited year warranty

Packaging & Delivery

Packaging Details: 1. each piece in one gift box which in our standard brand package and neutral packge ,20pcs in one carton
2. OEM pacakge is available

low price C82R ONVIF P2P indoor security cctv ip wireless camera



 1) High Definition, H.264 CMOS 2.0MP,
 2)  Support Onvif, triple stream.
 3) Pan:355°,Tilt:120° ,
 4) 3.6mm Lens,
 5) 12pcs 5mm IR LEDS 10m IR distance,
 6) Two way audio.

 7 )  indoor ip camera wireless

 8) P2P/WPS encryption, Easier to set up WiFi and viewing in Moblile.

 9) Triple Stream 1080P/ VAG/ QVGA

 10) Support up to 64G TF card memory, 24-hour recording.

 11) Built-in IR-CUT, no color no cast. 12pcs IR LEDS, 10m Night Vision

 12) Built in Microphone & Speaker, 2 way audio, excellent cavity design, loud intercom.

 13) Support WiFi/ DDNS. PC/APP to control multi-cameras.

 14) 4-Channel view, support up to 10 online users viewing viewing on line at the same time.

 15) Motion dectection, Massage alert, FTP upload

 16) Wi-Fi/802.11/b/g/n,support dynamic IP

 16) cctv ip wireless camera



Packaging & Delivery

Packaging Detail:VStarcam Brand or Neutral packing . OEM is accepted. Gross Weight : 0.65KG                                     Package size: 200x179x120mm(LXWXH)



The specification of C24S



Model No :C7824WIP
FeaturesFeaturesSoftware limit position, lower Pan Tilt failure rate
SystemOSEmbedded Linux OS
System securityThree level user authority management
Online usersSupport 4 online visitors simultaneously
DDNSFree DDNS
Control protocolONVIF 2.0 protocol, high interoperability
ProcessorHisilicon processor,built-in ARM926 @Max. 440MHz and a high-speed video co-processor.
ResetLong press for 15 seconds to restore back to factory settings
CollectionImage sensor1/4inch 720p Progressive scan CMOS sensor
CMOSSupport AWB, AGC, BLC
Imaging area4.40mm×2.52mm
SNR41dB
Minimum illumination0.8Lux/F1.4(colourful model ),0.3Lux/F1.(B&W mode)
Lens/viewing angle3.6mm @ F1.4/56.14 degree
Night visionDual IR-CUT filter auto switch, 12pcs 850nmΦ5mm LED,10m IR distance
IR control IR turned on: night vision view enabled, infrared Ray, ICR auto detect.                                                             IR turned off: night vision disabled, infrared ray off, ICR stay in day view mode.
VideoCompression FormatH.264 Main Profile/H.264 Baseline Profile/MJPEG/JPEG Baseline
Video coding processMulti-stream:720P/24fps+VGA/30fps+QVGA/30fps+720P @1fsJPEG snapshot
Resolution 1080p/VGA/QVGA
Bit RateCBR/VBR, output bit rate range:128~4096kbps
Max.Frame rate25fps
Picture AdjustmentContrast, brightness, saturation, chroma are adjustable.
AudioInputBuilt in -48dB Microphone
OutputBuilt in speaker(8Ω1W)`
Sampling frequency / width8KHz/16bit
Compression formatADPCM/32kbps
NetworkInterface10Base-T / 100Base-TX, RJ45 connector
Network ProtocolTCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,RTSP,P2P,etc.
WIFIWiFi802.11b/g/n
Antenna3dBi antenna,stronger signal, more stable
Wireless network securityOne key setup WiFi
StorageStorage modeLocal storage / client storage
InterfaceMicro SD/TF
Pan-TiltP/TPan:270°,Tilt:80°
Preset Postion Support up to 15 preset postions
Limit methodSoftware limit position, more accurate preset positions,lower Pan Tilt failure rate.

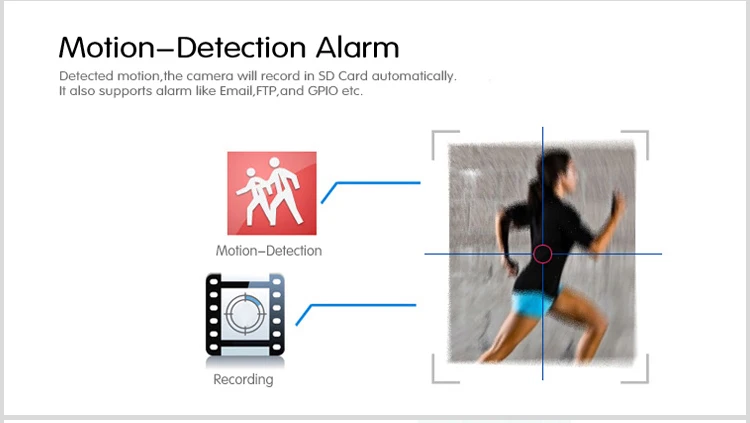

AlarmMotion detectionSupport motion detection
Alarm actionVideo upload via email/FTP server,Mobile App alarm
Physical indexRated VoltageDC5/2A±0.3V
Power comsumptionRated power:3.0W(IR ON)
Working environmentWorking Temperature:-20~70℃,Working Humidity 90%
WeightGross Weight:330g (Note: in kind prevail)
Housing materialABS plastics
Camera size145 x 110 x 125 mm (L×W×H)
InstallationWall mounting, ceiling mountin









Details of C24S:













Easy to operate and u can monitor in anytime at anyplace :





Main Fuctions :



















About US:

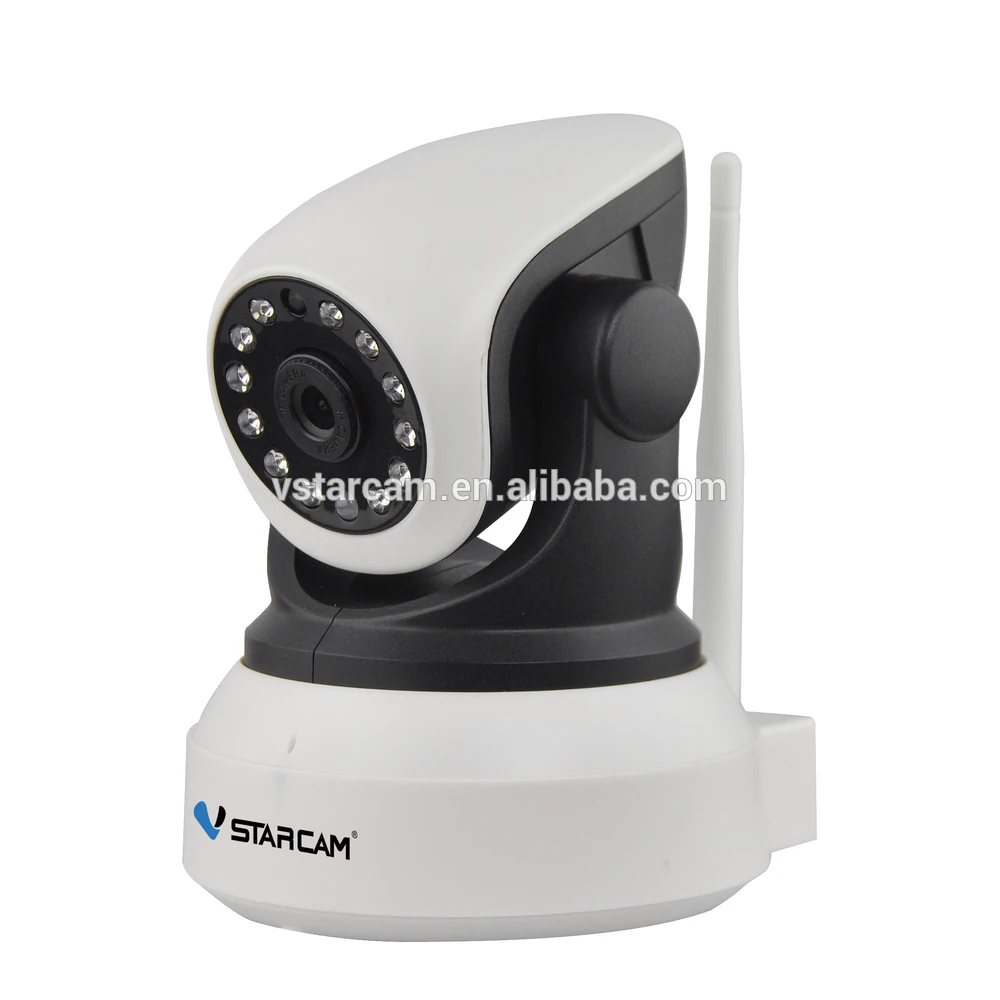

VStarcam low price C24S ONVIF 1080p cctv cctv ip wireless camera
