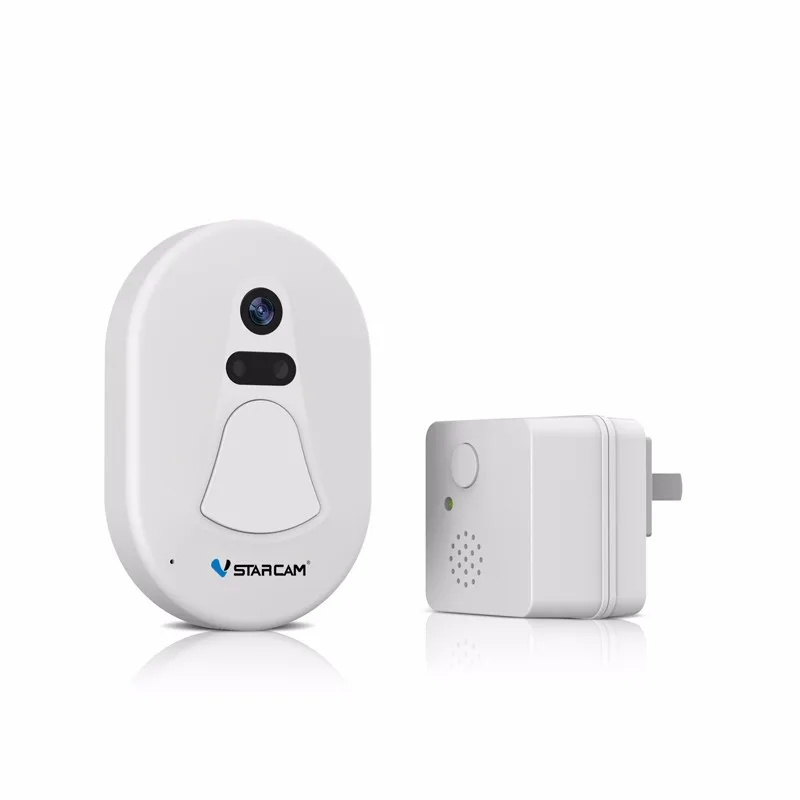

VStarcam D1 720P wifi wireless Door Bell Camera

FOB Reference Price:Get Latest Price
US $16-18 / Pieces | 1 Piece/Pieces Testing sample is ok (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
VStarcam
Model Number:
D1
Type:
IP Camera
Style:
Mini Camera
Sensor:
CMOS, support AWB,AGC,BLC
Technology:
NetWork
Special Features:
Make Video phone call with visitors
IR Distance:
5M
Resolution:
720P,VGA/QVGA
Color:
Silver
Certificate:
CE/FCC/RoHS
Online visitors:
Online visitor: Support up to 4 online visitors simultaneously
Rated Voltage:
DC5V±0.3V/1A
Storage:
support 32GB Micro SD Card
WiFi:
802.11b/g/n
Working temperature:
Temperature: -10 ~ 50 ℃, Humidity <95%
batteries:
Support
Supply Ability
Supply Ability:
8600 Piece/Pieces per Week smart door bell with 5m night vision distance
Packaging & Delivery
Packaging Details
VStarcam Brand or Neutral model packing as well as giftbox.
Port
Shenzhen /Guangzhou/HK
Lead Time :
Shipped in 2 days after payment
Video Description

VStarcam D1 720P wifi wireless Door Bell Camera

Product Description



Model No. :D1

Description

Product name

Doorcam

Features

Make Video phone call with visitors, and short time recording, known
visitor information without door open.

System

OS

Embedded Linux OS

 System security

Three-level user authority management

 Online visitor

Support up to 4 online visitors simultaneously

 DDNS

Built in free DDNS

Processor

Hi processor, built in ARM926 @Max. 440MHz and high-speed video co-processor.

Collection

 Image sensor

4-inch 720p progressive scan CMOS sensor

 Sensor

support AWB,AGC,BLC

  Sensor size

3.84mm×2.16mm

 SNR

≥39dB

Minimum illumination

0.8Lux/F1.4(colourful model ),0.3Lux/F1.(B&W mode)

 Lens/viewing angle

1.7mm at F2.4/96.96°

 Night vision

Dual IR-CUT Filter auto switch, 1pcs 850nmΦ28mil super power LED,5m IR distance.

IR-Control

IR turned on: night vision view enabled, infrared Ray, ICR auto detect.
IR turned off: night vision disabled, infrared ray off, ICR stay in day view mode.

Video

Compression standard

H.264 Main Profile/H.264 Baseline Profile/MJPEG/JPEG Baseline

Video coding process

Multi stream:720P/24fps+VGA/30fps+QVGA/30fps+720P @1fsJPEG capture

Resolution

720p/VGA/QVGA

Bit Rate

CBR/VBR, output bit rate range:128~4096kbps

Frame rate

30fps/25fps(720p)

Image adjustment

 Brightness,Contrast, Saturation are adjustable.

Audio

Input

1 Channel Internal -48dB microphone

Output

Internal speaker(8Ω1W)

Sampling frequency/       bits wide

8KHz/16bit

Compression standard /   bit rate

ADPCM/32kbps

Network

Protocol

TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,RTSP,P2P,etc.

WiFi

802.11b/g/n

Network security

WPS encryption

Wireless Connection

AP hotspot

Record

Recroding mode

motion detection recording, doorbell button trigger recording

 Storage

SD card storage

Physical indicators

Rated Voltage

DC5V±0.3V/2A

Power supply

Mciro USB interface ,power supply 5V / 2A

Power consumption

Rated power:3.2W(IR on )

Working temperature

Temperature: -10 ~ 50 ℃, Humidity <95%

Installation

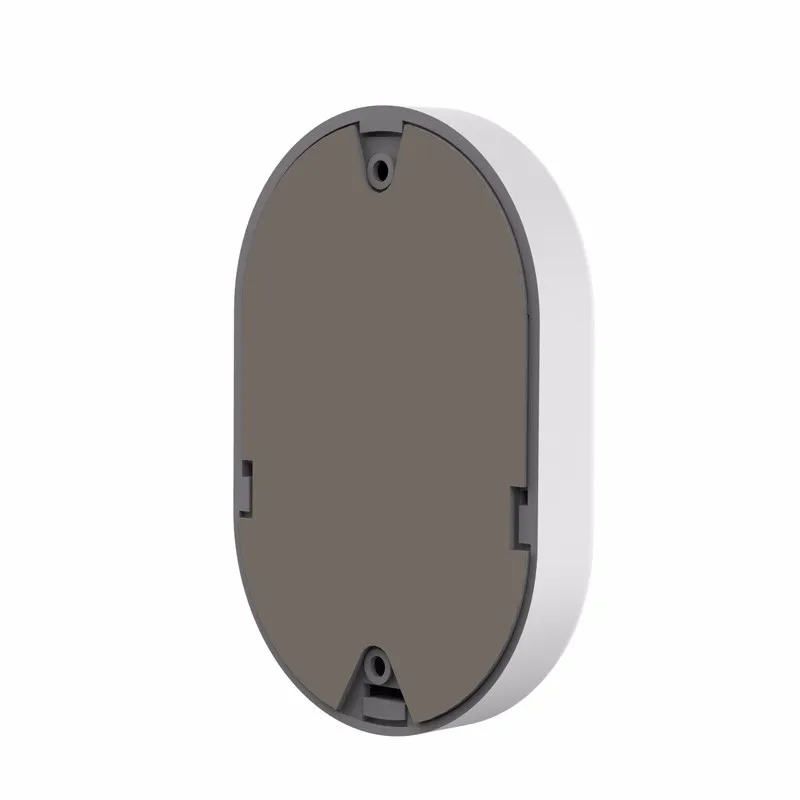

 Peephole installation for indoor , wall mounting installation for front door.

Housing material

ABS plastic





Note:Only for reference



D1 D11D12D16D13D14D17D15






D1
